Integration Management

Section	Description
Module Context	Integration Management covers OAuth Clients, Authorized Applications, and Single Sign-On (SSO) in Genesys Cloud Administration.
Admin Location	Admin → Integrations
Purpose	Enables secure API authentication, third-party application connectivity, and enterprise identity federation.

---

OAuth Clients

Overview

Topic	Explanation
OAuth Client	An application registered in Genesys Cloud that can request access tokens to call Platform APIs.
OAuth Standard	Genesys Cloud implements the OAuth 2.0 authorization framework for secure API authorization.
Access Token	Temporary credential used to authenticate API calls.
Token Lifetime	Configurable between 300 seconds and 172,800 seconds (2 days).
OAuth Scopes	Define the level of access an application has to organization data.
Role-Based Access	OAuth permissions are determined by roles assigned to the OAuth client.
Integration Role	OAuth clients are commonly used for integrations, data actions, AppFoundry apps, and external systems.

OAuth allows organizations to share information with applications without sharing user credentials, and uses scopes and roles to restrict access to resources.

Navigation

Task	Navigation
View OAuth Clients	Admin → Integrations → OAuth
Create OAuth Client	Admin → Integrations → OAuth → Add Client
Review Authorized Apps	Admin → Integrations → Authorized Applications

Configuration Fields

Field	Description	Example
App Name	Name displayed when authorization occurs	CRM_Integration_Client
Description	Brief description of the OAuth client purpose	Salesforce Data Sync
Token Duration	Lifetime of OAuth access tokens (300–172,800 seconds)	3600
Grant Types	Defines how an application obtains a token	Client Credentials
Roles	Permissions assigned to the OAuth client	Master Admin
Client ID	Unique identifier generated automatically	Generated
Client Secret	Secret key used to authenticate token requests	Generated
Authorized Redirect URI	Used with Authorization Code or Implicit grants	https://app.example.com/callback

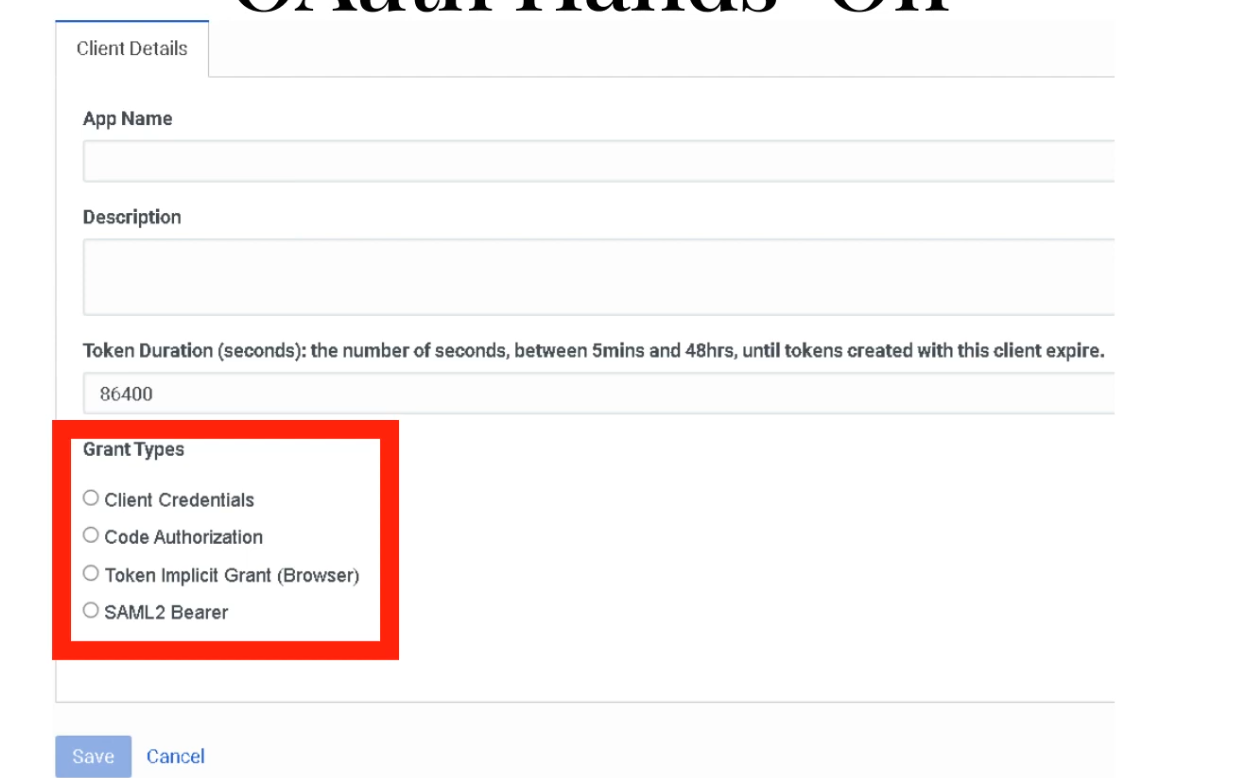

Grant Types

Grant Type	Description	Typical Use
Client Credentials	Machine-to-machine authentication; no user context	Server integrations, data actions
Authorization Code	User-delegated access with redirect	Web apps requiring user context
Implicit	Simplified flow for browser-based apps	Legacy browser apps
SAML2 Bearer	SSO-based token exchange	Federated identity scenarios

⚠️ After selecting Client Credentials, a Roles tab appears — assign the minimum required role. Use least-privilege roles in production.

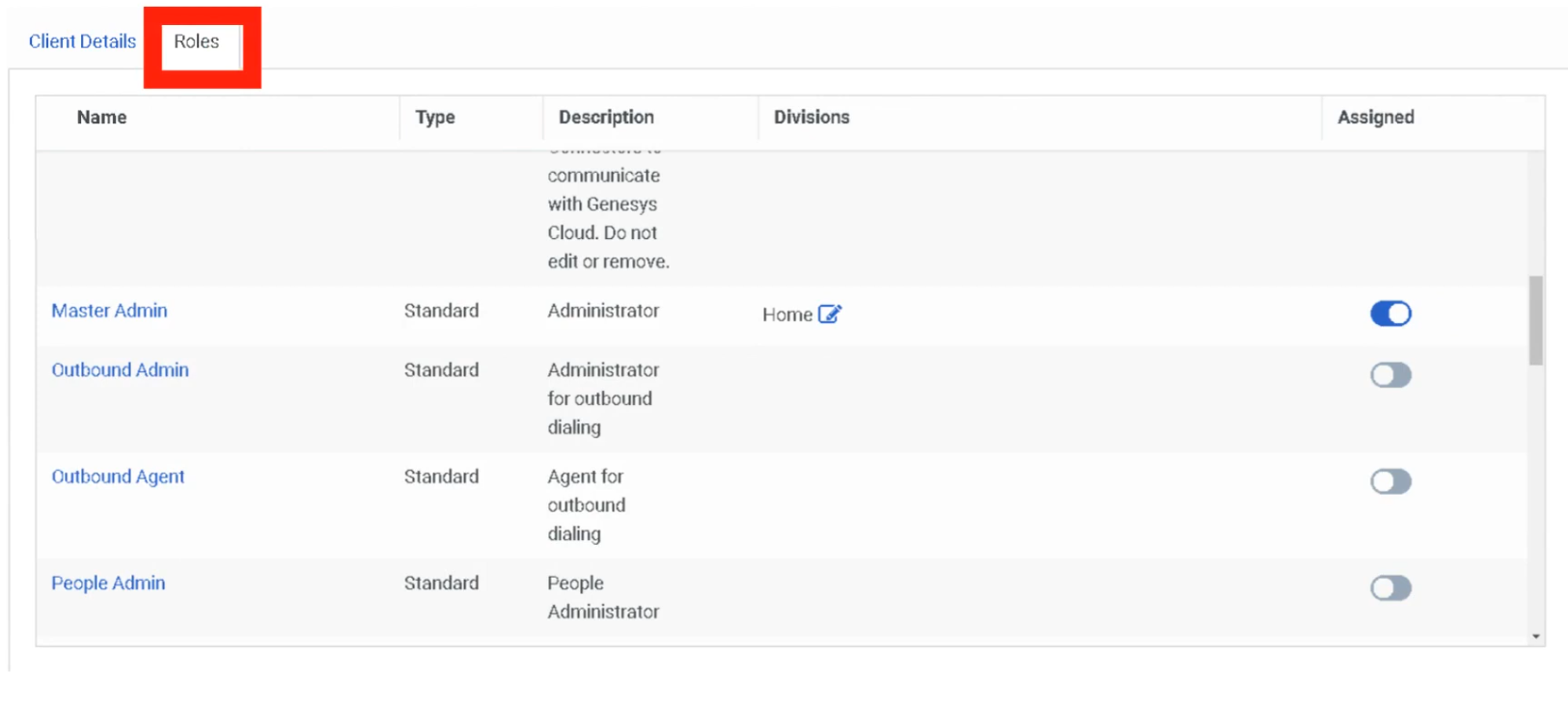

After selecting Client Credentials, the Roles tab appears — assign Master Admin or a least-privilege role.

Implementation Steps

Step	Action
Step 1	Navigate to Admin → Integrations → OAuth
Step 2	Click Add Client
Step 3	Enter application name and description
Step 4	Configure token expiration
Step 5	Select OAuth grant type
Step 6	Assign roles to the OAuth client
Step 7	Save configuration
Step 8	Copy generated Client ID and Client Secret — store securely

Creating an Integration Using OAuth Credentials

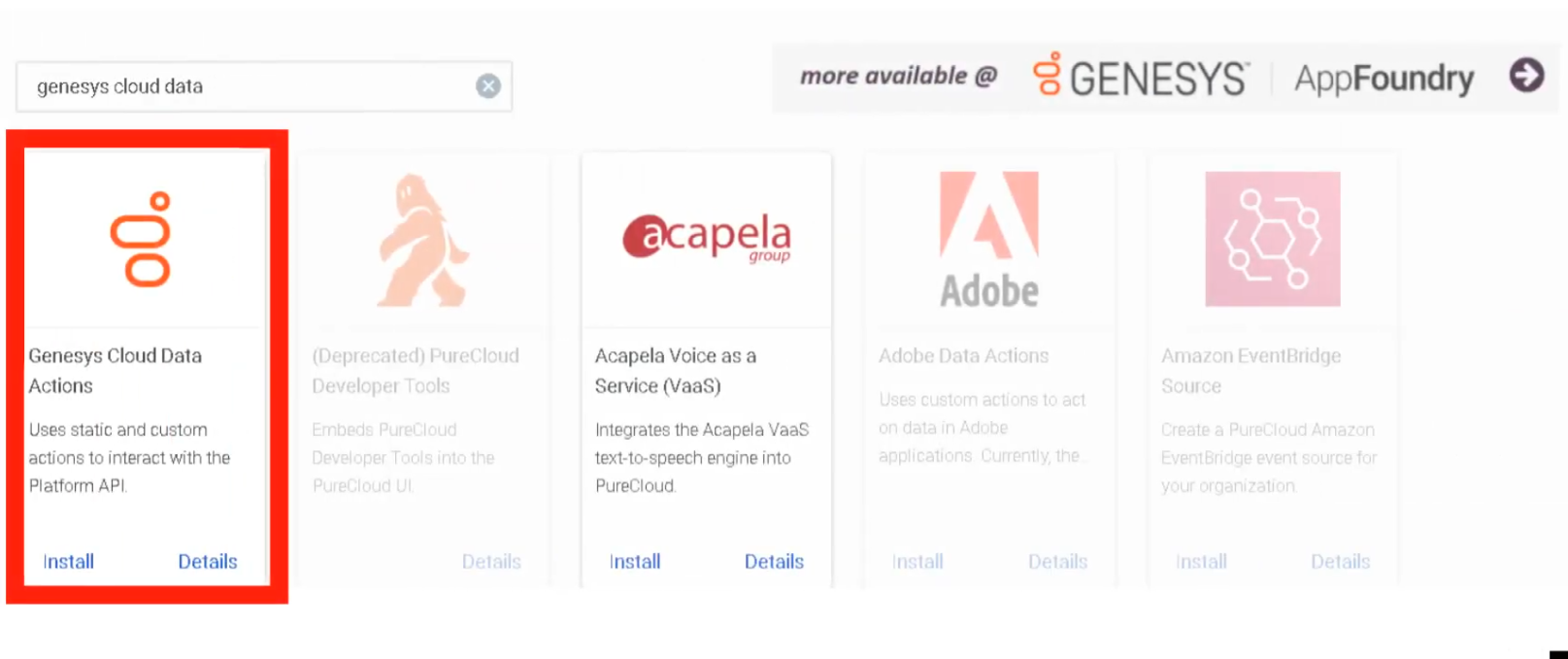

After creating an OAuth client, use the credentials to configure an integration:

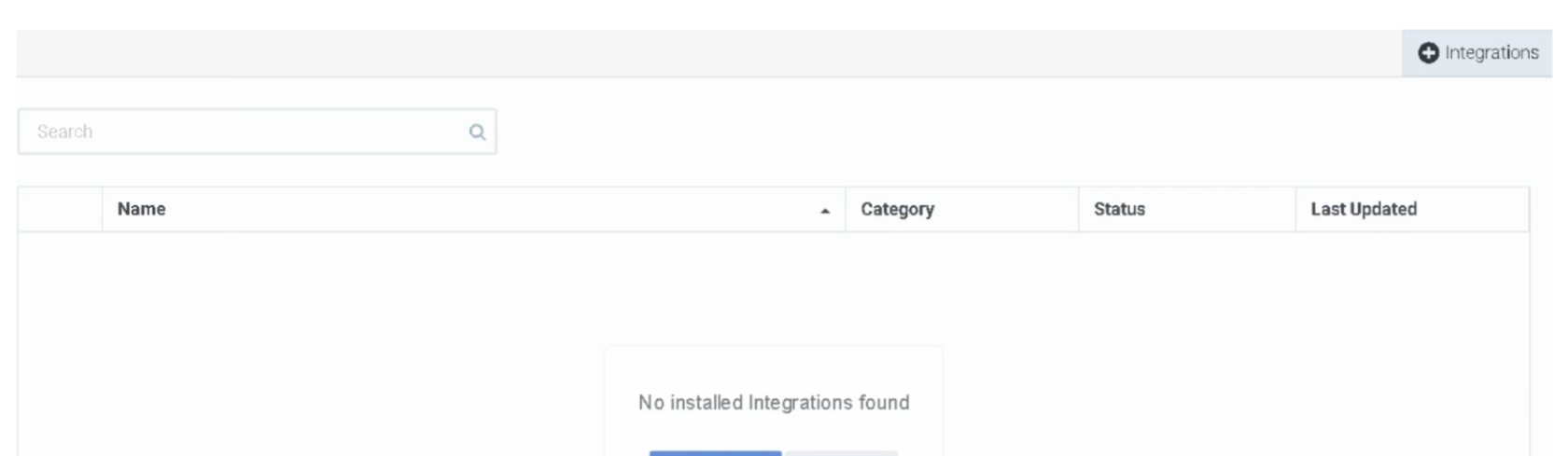

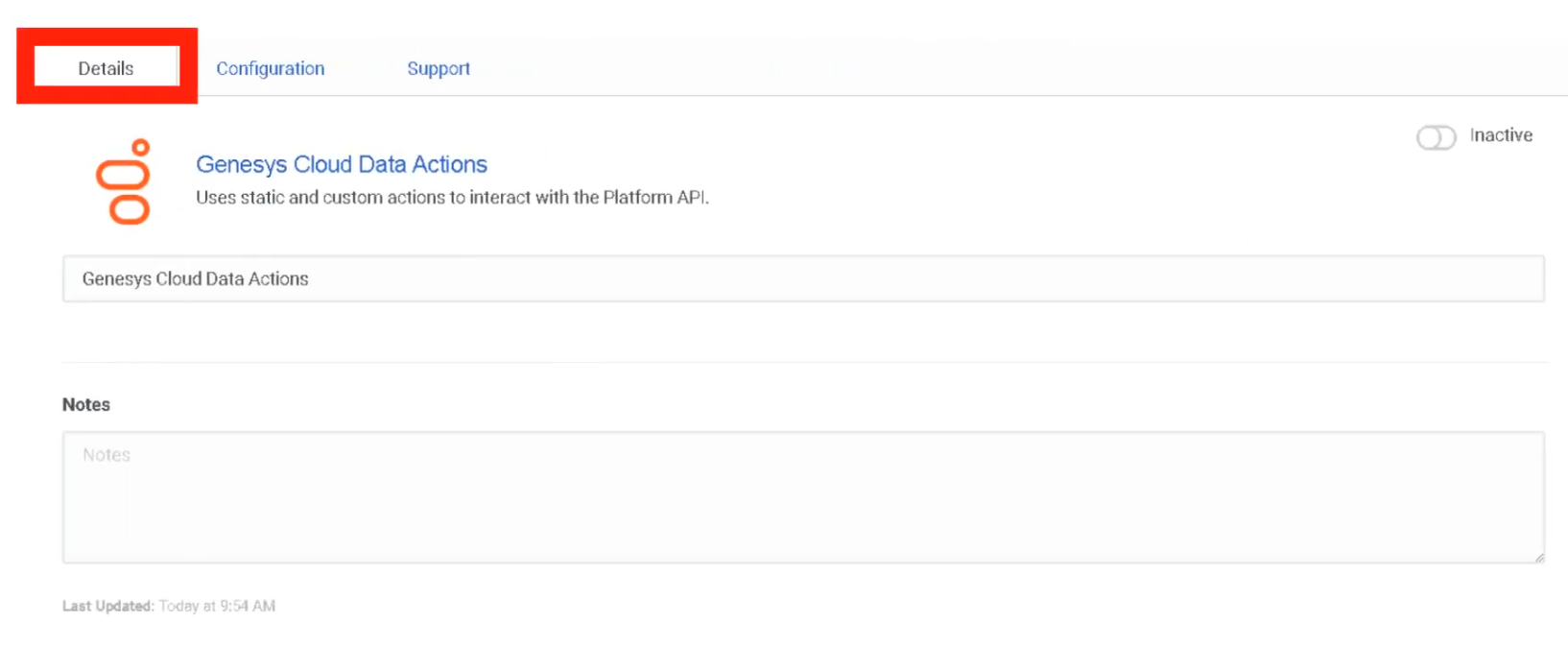

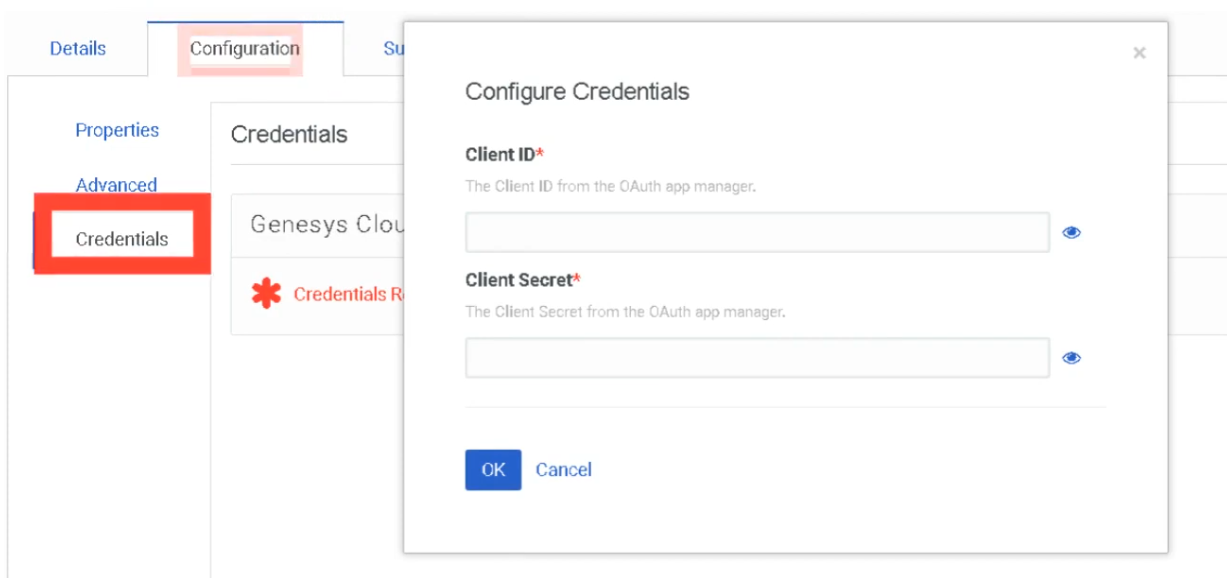

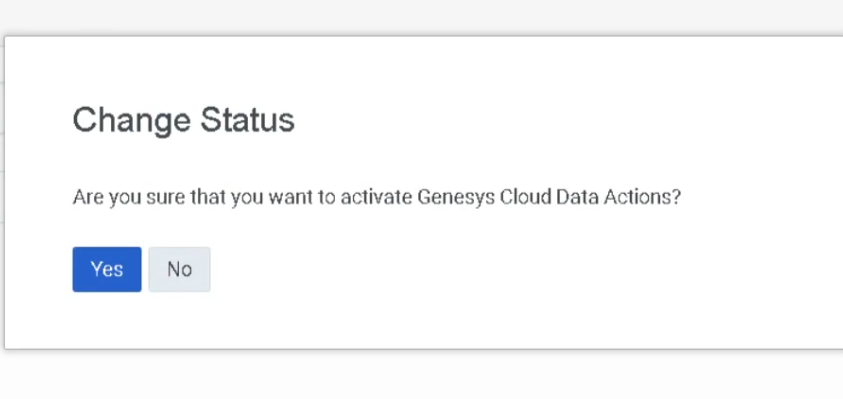

Add the integration using the OAuth credentials:

Creating a Data Action

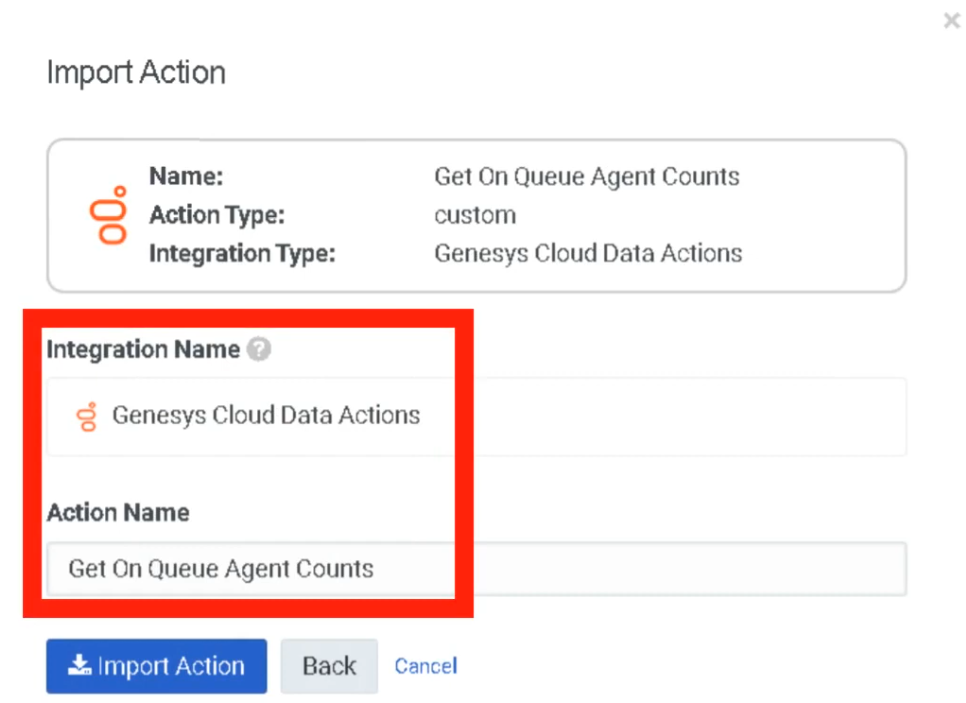

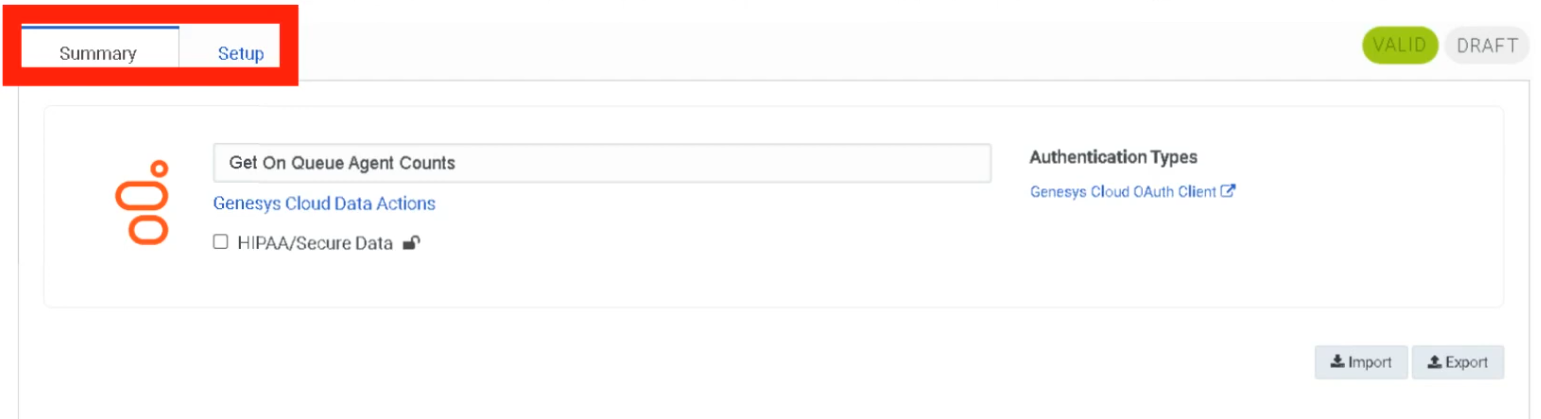

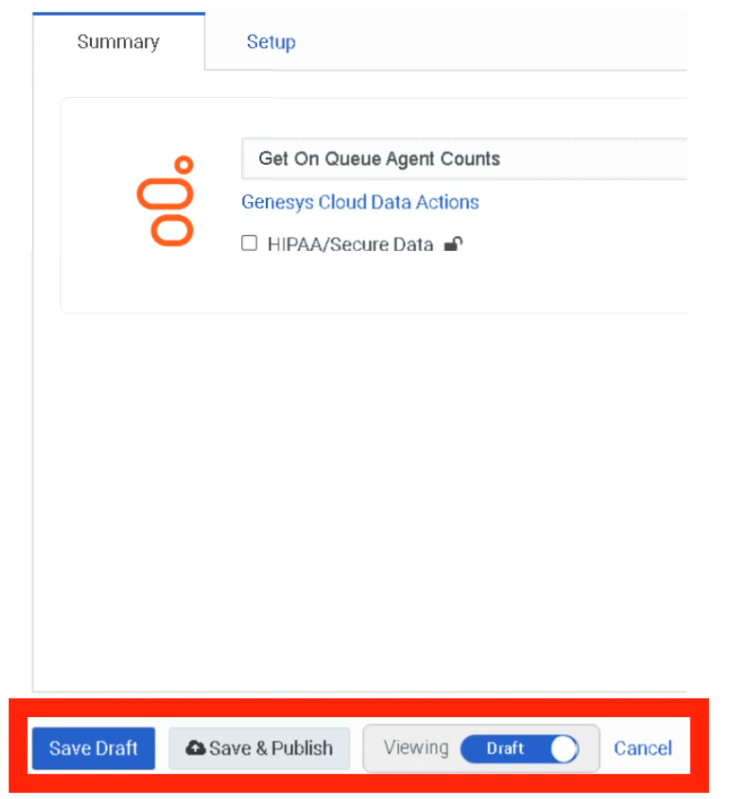

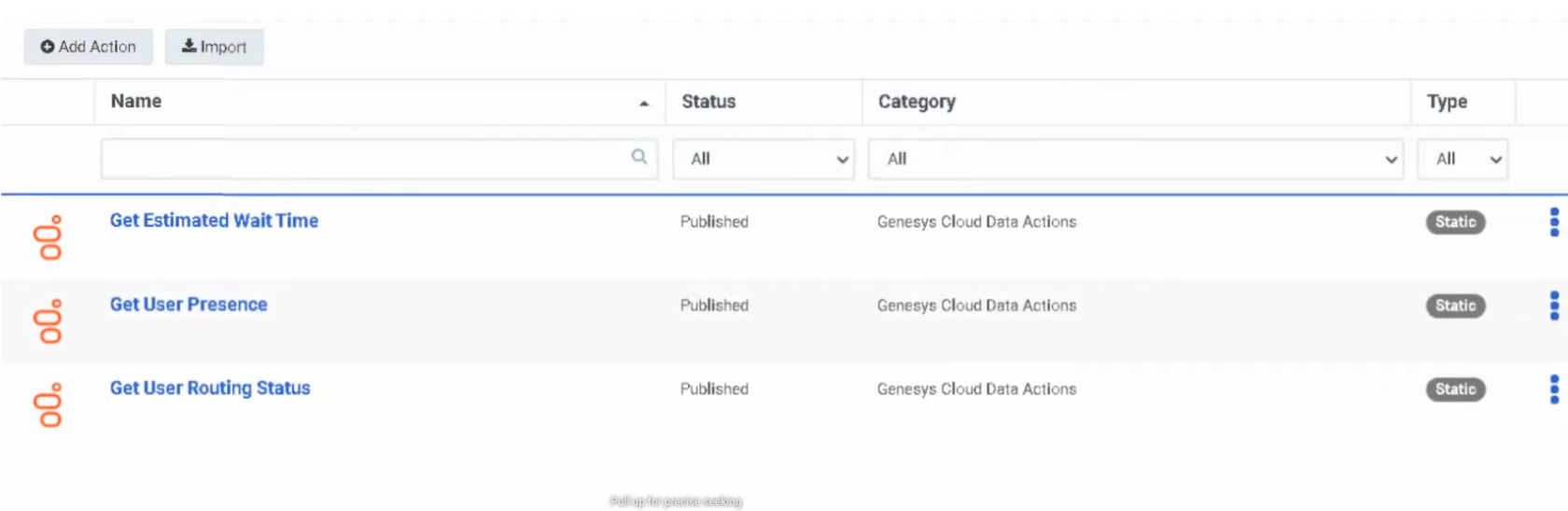

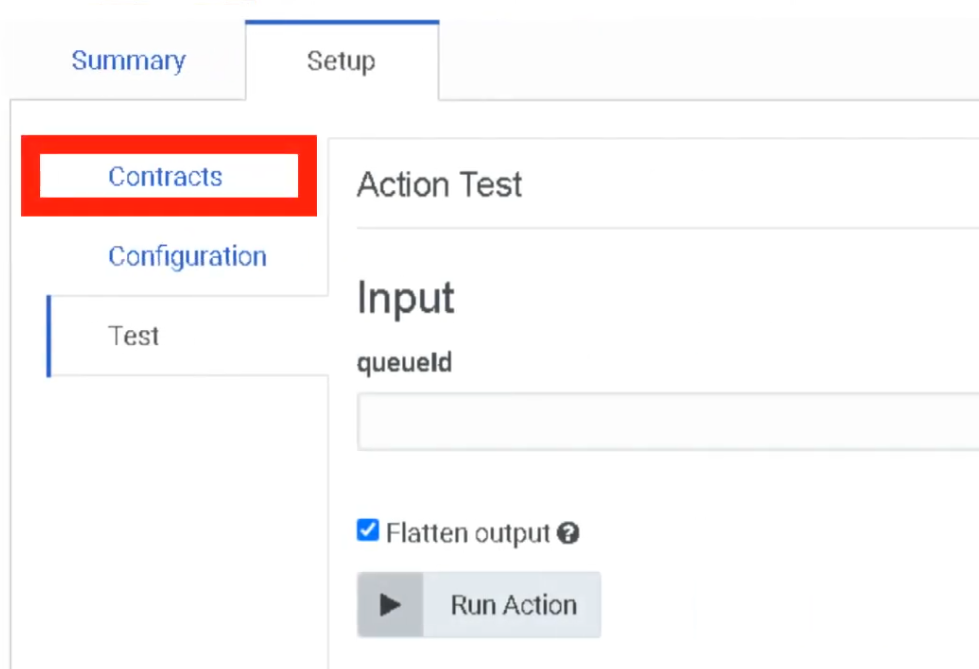

After the integration is configured, create a Data Action to call APIs from Architect flows:

End-to-End Flow: OAuth → Integration → Data Action → Architect

External System
      ↓
OAuth Client Authentication
      ↓
Access Token Issued
      ↓
Integration / Data Action
      ↓
Architect Flow
      ↓
Customer Interaction

Security Considerations

Security Control	Description
Least Privilege Access	Assign minimal permissions to OAuth clients
Token Expiration	Shorter token lifetimes reduce exposure
Secure Storage	Store client secrets in secure vaults
API Monitoring	Track requests via Platform Usage dashboard
Credential Protection	Client ID + Secret function like a username/password — protect accordingly

Troubleshooting

Issue	Cause	Resolution
Token request fails	Invalid client credentials	Verify client ID and secret
API access denied	Missing role permissions	Assign correct roles
Token expired	Token lifetime exceeded	Request new token
Authentication errors	Incorrect grant type	Verify OAuth configuration
Integration failure	Credentials not configured	Update integration credentials

Interview Cheat Sheet

Question	Answer
What is OAuth used for in Genesys Cloud?	Authenticate applications and authorize API access
What is an OAuth access token?	Temporary credential used to authenticate API requests
What grant types are supported?	Client Credentials, Authorization Code, Implicit, SAML2 Bearer
What controls API access permissions?	OAuth client roles and scopes
Maximum token lifetime?	172,800 seconds

---

Authorized Applications

Overview

Topic	Explanation
Authorized Application	An application that has been granted permission to access Genesys Cloud via OAuth.
Application State	Applications can be Pending, Approved, or Revoked.
Scopes	Define the specific permissions granted to an application.
Security Importance	Allows administrators to control external application access and revoke permissions when necessary.

Navigation

Task	Navigation

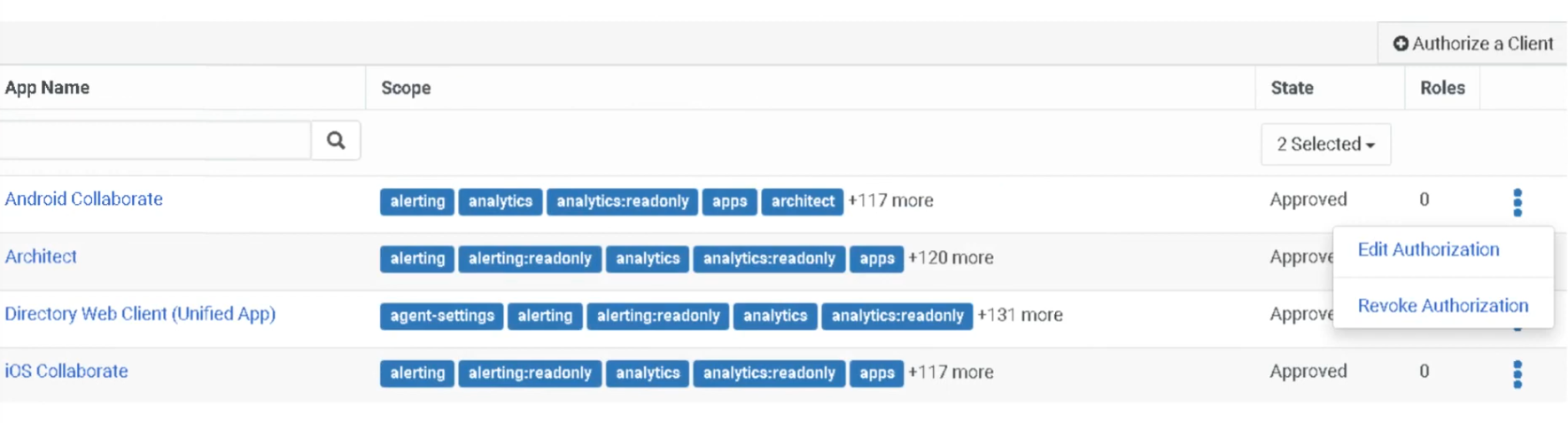

View Authorized Applications	Admin → Integrations → Authorized Applications
Edit Application Permissions	Click ⋮ (three dots) beside the application
Revoke Application Access	Select Revoke from application menu

Configuration Fields

Field	Description	Example
App Name	Name of the OAuth client application	CRM_Integration_App
Scopes	Permissions granted to the application	analytics:read
State	Current authorization status	Approved
Roles	Roles assigned to the application	Master Admin
Actions Menu	Options to edit or revoke access	Edit / Revoke

Application States

State	Meaning
Pending	Application has requested access but not yet approved
Approved	Application is authorized to access Genesys Cloud APIs
Revoked	Application access has been removed; API calls are immediately blocked

⚠️ Revoking an application immediately blocks all API access. Use with caution for active integrations.

Best Practices

Practice	Reason
Regularly review authorized apps	Ensure only trusted applications have access
Apply least privilege roles	Limit application permissions
Revoke unused applications	Reduce security risk
Monitor API activity	Detect unusual usage patterns
Document integrations	Maintain governance over external access

Interview Cheat Sheet

Question	Answer
What are Authorized Applications?	Applications granted OAuth permission to access Genesys Cloud APIs
What controls application permissions?	OAuth scopes and assigned roles
Where are authorized apps managed?	Admin → Integrations → Authorized Applications
What happens if an app is revoked?	It can no longer access the platform APIs — immediately

---

Single Sign-On (SSO)

Overview

Topic	Explanation
Single Sign-On	Authentication method allowing users to log into Genesys Cloud using corporate identity provider credentials.
Identity Provider (IdP)	External authentication service such as Azure AD, Okta, Google Workspace, or OneLogin.
Service Provider (SP)	Genesys Cloud acts as the service provider in SSO integrations.
Protocol	SAML 2.0 — the only supported SSO protocol.
Authentication Flows	Supports Service Provider–initiated and Identity Provider–initiated login flows.
User Requirement	Users must already exist in Genesys Cloud before SSO authentication will work.
Certificate Risk	Expired IdP certificates will break authentication for all SSO users.

Navigation

Task	Navigation
Configure SSO	Admin → Integrations → Single Sign-On
Add Identity Provider	Admin → Integrations → Single Sign-On → Add Identity Provider
Download Genesys Certificate	Available within the SSO configuration page

Configuration Fields

Field	Description	Example
Identity Provider Name	Name of the configured SSO provider	AzureAD_SSO
Display Name	Name displayed on login page	Company SSO
Identity Provider Type	External authentication service	Azure AD
SAML Metadata File	XML configuration file provided by IdP	idp_metadata.xml
Issuer URI	Unique identifier of the IdP	https://login.microsoftonline.com
SSO URL	URL used to authenticate users	https://login.microsoftonline.com/...
Logout URL	Optional logout redirect URL	https://login.microsoftonline.com/logout
Certificate	Security certificate for validating SAML responses	Base64 certificate

SSO Authentication Flow

User Login Request
       ↓
Redirect to Identity Provider
       ↓
User Authentication (+ MFA if configured in IdP)
       ↓
SAML Assertion Sent to Genesys Cloud
       ↓
Genesys Cloud Validates Assertion
       ↓
User Access Granted

Implementation Steps

Step	Action
Step 1	Obtain SAML metadata XML from identity provider
Step 2	Navigate to Admin → Integrations → Single Sign-On
Step 3	Click Add Identity Provider
Step 4	Import SAML metadata file
Step 5	Configure login display settings (name, logo)
Step 6	Save configuration
Step 7	Test authentication before enabling for all users
Step 8	Enable SSO for organization users

Limitations & Constraints

Constraint	Description
Protocol Support	Only SAML 2.0 is supported — no OIDC or WS-Federation
User Provisioning	Users must exist in Genesys Cloud before they can authenticate via SSO
IdP Configuration	Requires configuration on both IdP and Genesys Cloud sides
Certificate Expiration	Expired certificates break authentication for all SSO users — monitor and rotate proactively

Troubleshooting

Issue	Cause	Resolution
SSO login failure	Incorrect SAML configuration	Verify metadata configuration
Invalid assertion	Certificate mismatch	Update SAML certificate
User cannot authenticate	User not provisioned in Genesys Cloud	Create the user first
Login redirect loop	Incorrect IdP URL	Verify identity provider configuration
SSO test fails	Incorrect metadata	Re-import metadata file

Interview Cheat Sheet

Question	Answer
What is SSO in Genesys Cloud?	Authentication using corporate identity providers instead of separate Genesys credentials
Which protocol is supported?	SAML 2.0 only
What must exist before SSO works?	The user account must already exist in Genesys Cloud
Where is SSO configured?	Admin → Integrations → Single Sign-On
What breaks SSO?	Expired certificates or users not provisioned in Genesys Cloud
