0.- Oracle SBC Peer to peer lab Introduction
The objective of this first series of entries is to setup an environment to be able to perform testing on a Oracle Session Border Controller.
SIP traffic will be generated using Linphone application on 2 remote hosts using Oracle SBC.
| Name |
Network |
| Management (Home Network) |
192.168.10.0/24 |
| External |
192.168.11.0/24 |
| Internal |
192.168.12.0/24 |

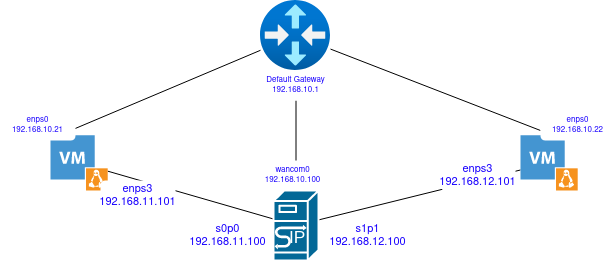

Diagram representing our LAB
| Device | Interface |
IP |
Gateway |
Description |
| OracleSBC |
wancom0 |
192.168.10.100 |
192.168.10.1 |
SBC Management |
| OracleSBC | s0p0 |
192.168.11.100 |
192.168.11.1 |
SBC Internal |
| OracleSBC | s1p1 |
192.168.12.100 |
192.168.12.1 |
SBC External |
| VM1 |
enp1s0 |
192.168.10.21 |
192.168.10.1 |
VM1 Management |
| VM1 |
enp3s0 |
192.168.11.101 |
192.168.11.1 |
VM1 Internal |
| VM1 |
enp1s0 |
192.168.10.22 |
192.168.10.1 |
VM1 Management |
| VM1 |
enp3s0 |
192.168.12.101 |
192.168.12.1 |
VM2 External |
