Registering Session manager with System Manager ver 10.1

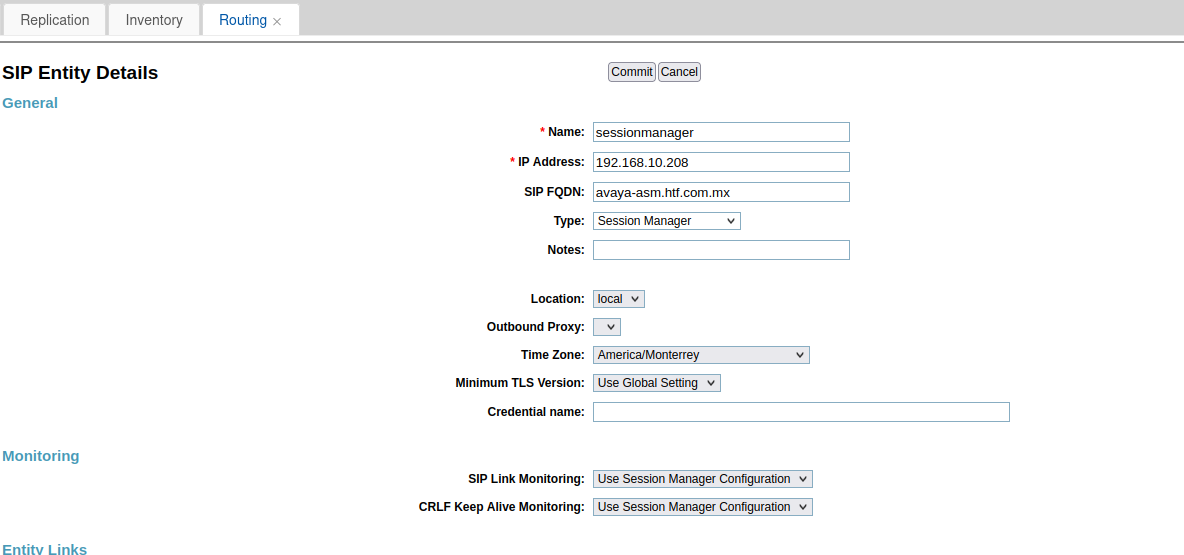

On system Manager Navigate to the Elements > Routing > SIP Entities page and add the Session Manager
and Branch Session Manager as a SIP entity. (here you specify the IP for the Security Module)

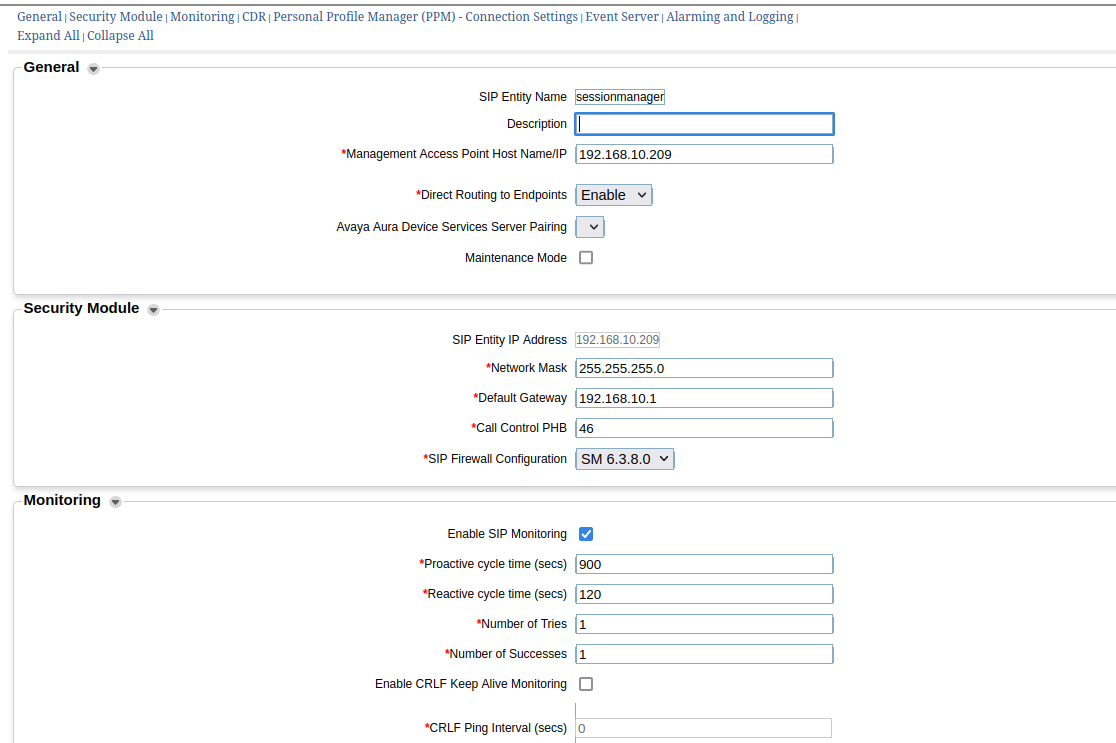

Add new Element for session manager, select previous sip entity and specify the session manager management IP address.
Enrollment is usually done at the initial deployment of Session Manager, you can also perform a manual enrollment process by running initTM, this not always work and its recommended to redeploy session manager and run wizard from CLI after fresh installation.
Validate replication on services, replication, session manager.
Logon to session manager via ssh and run initTM (/opt/Avaya/bin/initTM).
cust@avaya-asm bin]$ initTM
Downloading System Manager root CA
Unable to download System Manager root CA, rc = 28

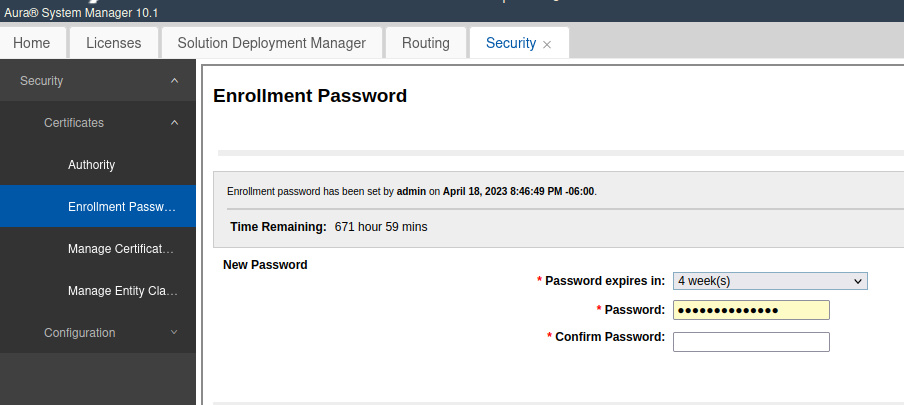

Enter the Enrollment Password that matches the value in System
Manager administration (Security -> Certificates --> Enrollment Password).
Enrollment Password:
Enrollment Password again:

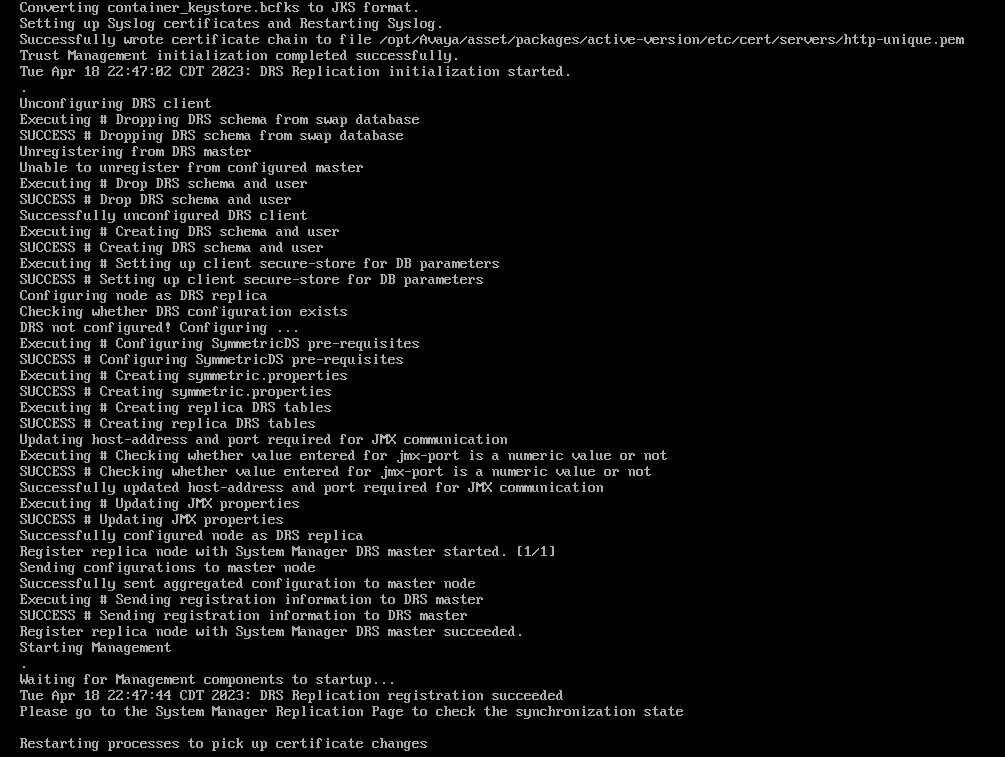

Trust Management Initialization started.
Trust Management Initialization with System Manager started.
Fail to replicate
validate hostname /etc/hosts to make sure both system manager and session manager have fqdn on their host files
[cust@avaya-asm ~]$ cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.10.209 avaya-asm.htf.com.mx avaya-asm Asm
192.11.13.17 smgrvirtual.htf.com.mx smgrvirtual AsmSysMgr
192.168.10.210 smgr.htf.com.mx smgr AsmSysMgr1root >cat /etc/hosts
127.0.0.1 localhost.localdomain localhost
192.168.10.210 smgr.htf.com.mx smgr
::1 localhost6.localdomain6 localhost6
192.168.10.210 smgrvirtual.htf.com.mx smgrvirtual
192.168.10.209 avaya-asm.htf.com.mx avaya-asm
